SANGAMO / SCHLUMBERGER
KILO-WATT-HOUR-METER

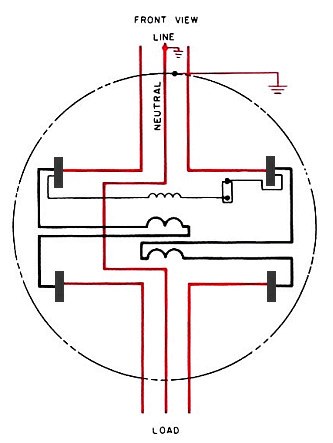

THE BACK SIDE OF THE  KILO-WATT-HOUR-METER   ...   &   HOW TO WIRE IT  ...


K I L O - W A T T - H O U R - M E T E R   SANGAMO / SCHLUMBERGER USA (1990)
***************************************************************************
   Diameter = 7 " / 18 cm ( total );  Depth = 5 " / 13 cm ( w. Contacts )

          Rr 27_7/9  /  SCHLUMBERGER  /  00000  /  KILOWATTHOURS
                  CL200  240 V  3W  TYPE J5S  30TA  7.2Kh
       +-----------------------------------------------------------+
       |         MODEL  TMD-J5S / TEXAS METER & DEVICE CO.         |
       |      Waco, Texas. Ph. 254-799-0261  /  S/N 69915619       |
       +-----------------------------------------------------------+
         CAT.NO. 96003  /  FM2S  60 Hz  /  SANGAMO  WATTHOUR METER

R E M A R K   T O   T H E   » TEXAS «   S T I C K E R :
===========================================================================
The  » TEXAS METER CO. «   refurbish various manufacturer's electric meters

            How a KILO-WATT-HOUR-METER works ...
            Inside the KILO-WATT-HOUR-METER Unit ...
            Have a Look at an APPLICATION ...
                                              ... 1st year used ...
